High Gain GPS BeiDou RTK GNSS Antenna for Industrial Drone

Name: High Gain GPS BeiDou RTK GNSS Antenna for Industrial Drone
Brand: STAコネクタ
SKU: STA-903
Availability: InStock
Rating: 5 (1 reviews)

No.STA-903

STA-903 Quadrifilar Helix Antenna

The STA-903 GNSS antenna adopts multi-arm multi-feed structural technology, which can cover L1, L2/L5 and L-band navigation signals, and is compatible with BeiDou-2, GPS, GLONASS, GALILEO and other global satellite positioning systems.Built-in cascaded filters and high-performance LNA modules endow the product with superior out-of-band signal suppression and powerful anti-interference performance. It can maintain stable and dependable working performance amid complex and severe electromagnetic interference.Tailored for multi-system fusion positioning, this antenna perfectly adapts to various high-precision measurement and positioning application needs.

Support satellite signal

GPS, GLONASS, BDS, Galileo

Impedance

50 Ω

Polarization mode

RHCP

Horizontal overlay angle

360°

Low noise amplifier gain

32±2dB

Operating voltage

3.0~16V DC

Operating current

≤45mA

Operating temperature

－40℃～＋80℃

Storage temperature

－45℃～＋85℃

Humidity

95% Non-condensing

Waterproof level

IP67

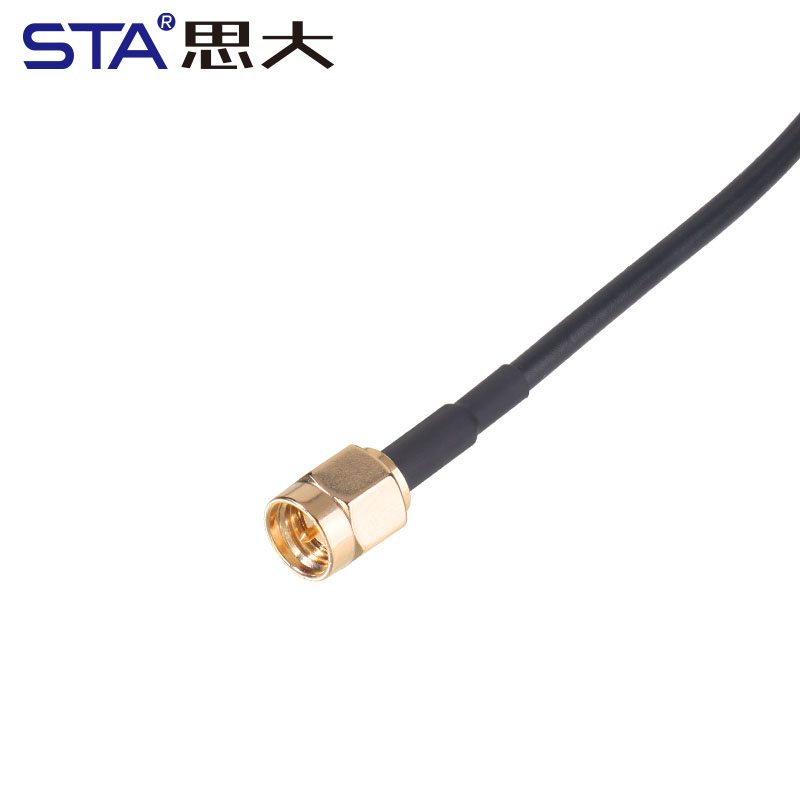

Output Connector

SMA Male

STA-901:

Standard

STA-902:

Foldable

STA-903:

Cable

見積もりを取る

説明

Product Technical Features

The multi-arm spiral technique is adopted to ensure the right-handed circular polarization and phase center performance, and reduce the influence of measurement errors.
The antenna unit has the characteristics of high gain and small gain roll down, which is good for receiving signals from low elevation satellites.
Exquisite low noise, high gain amplification and excellent out-of-band suppression;
Small size, light weight, easy to carry and install.

Product Application
It is suitable for the occasions where the volume and weight are required, such as drones, micro RTK, sub-meter handheld phones/tablets and other portable devices.

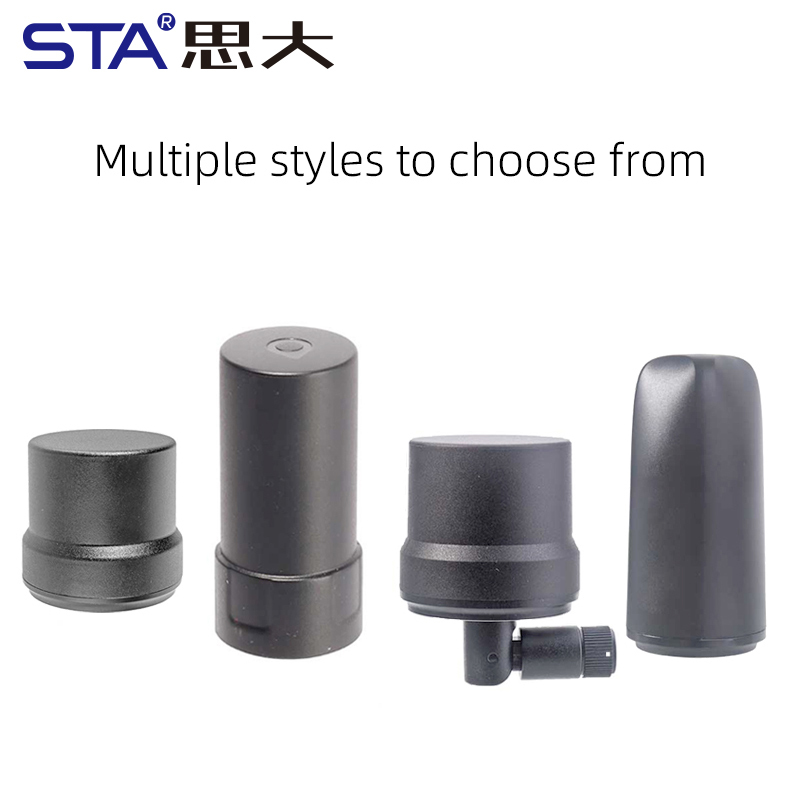

Model 901 / 902 / 903 Difference & Advantages

1. Model STA-901

Standard straight integrated connector design
Fixed installation angle, no adjustable structure
Suitable for conventional equipment with sufficient installation space and vertical interfaces
Cost-effective, basic version for general GNSS positioning scenarios

2. Model STA-902 (Foldable Connector Version)

Exclusive foldable & rotatable mounting joint
Flat storage, small size, high portability for drones, handheld survey devices
Flexible angle adjustment, keeps antenna vertical to ensure stable satellite signal
Relieve cable bending stress, effectively prolong service life
No extra adapters needed, lower installation cost & failure rate
Perfect for narrow space and special interface angle installation

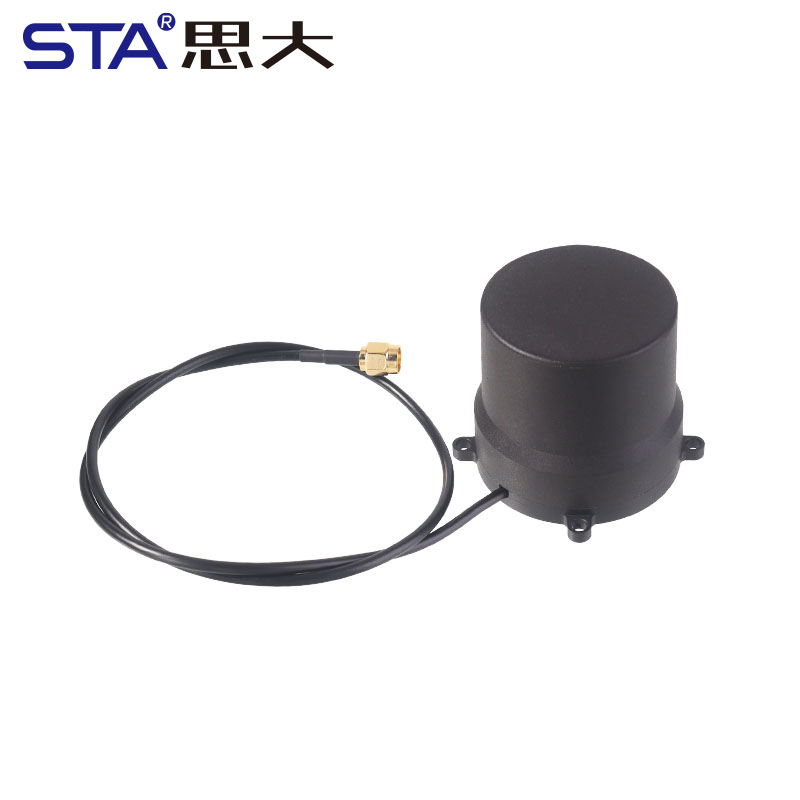

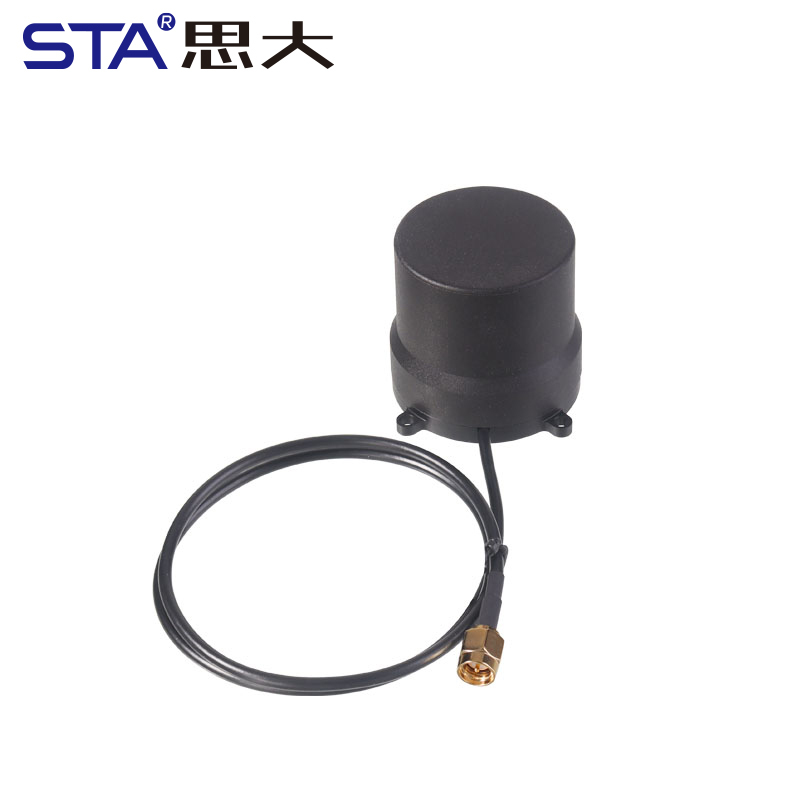

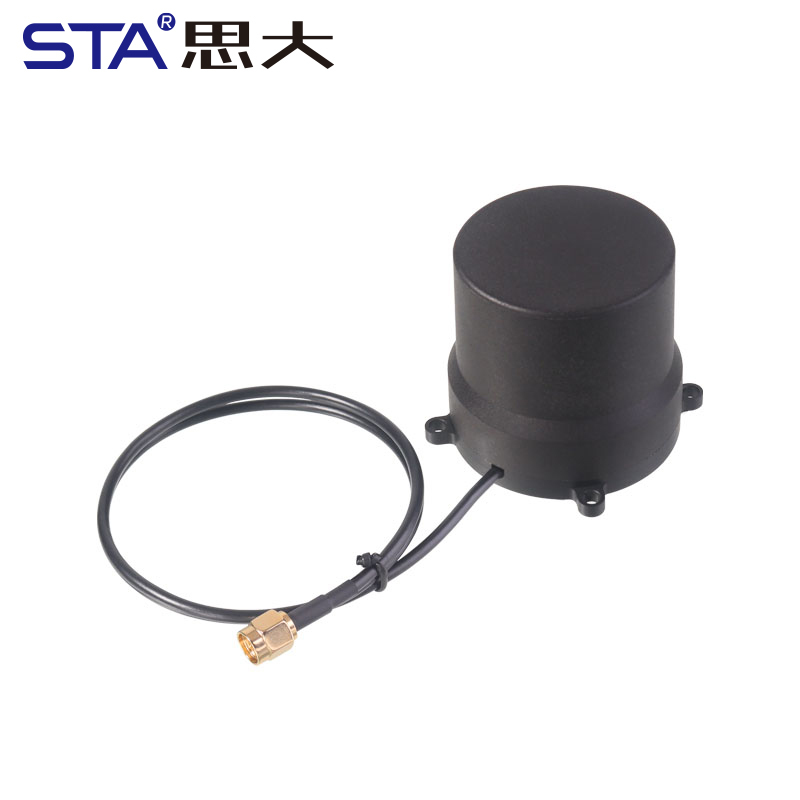

3. Model STA-903 (Cable Outlet Version)

External cable connection design, customizable wire length and connector type

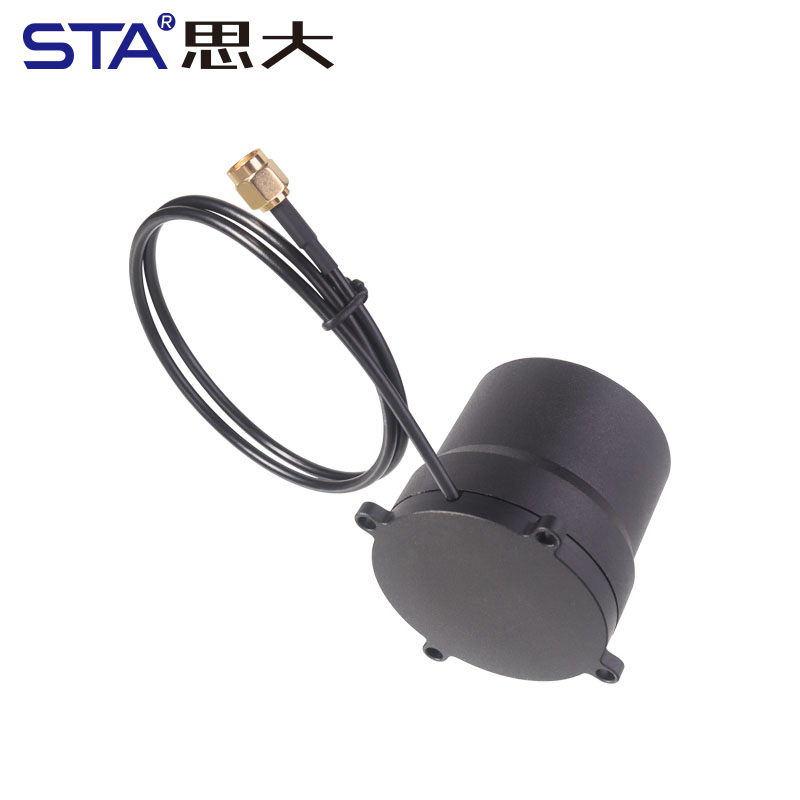

4 mounting holes on lower shell for more firm installation
Free placement of antenna body, away from metal shelter and electromagnetic interference
Greatly improve satellite reception performance
Widely compatible with drone flight controller, survey terminal, industrial router and other devices
Ideal for scenarios requiring remote antenna placement
